Характеристики

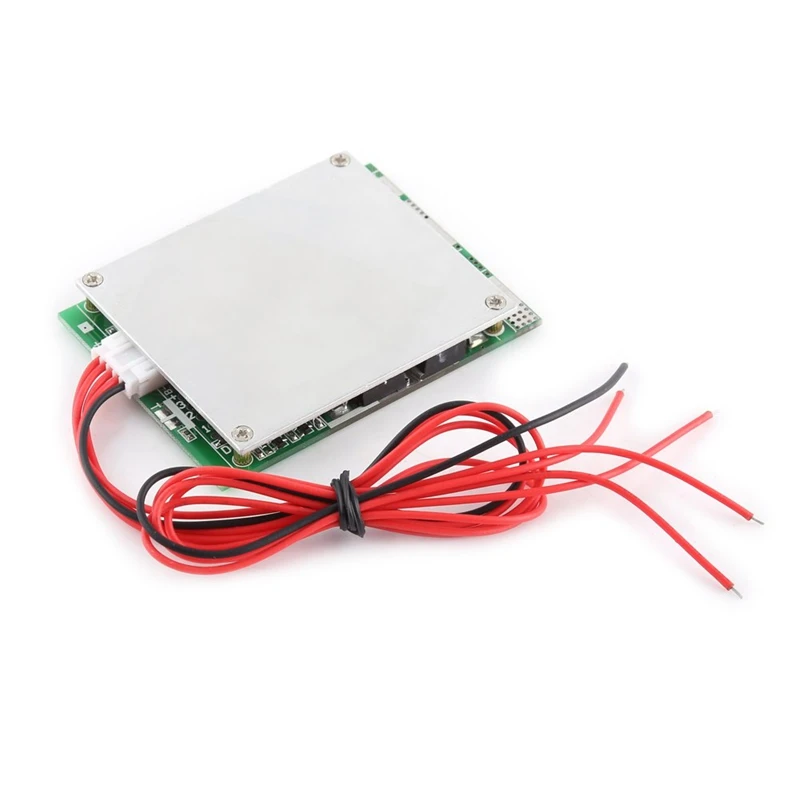

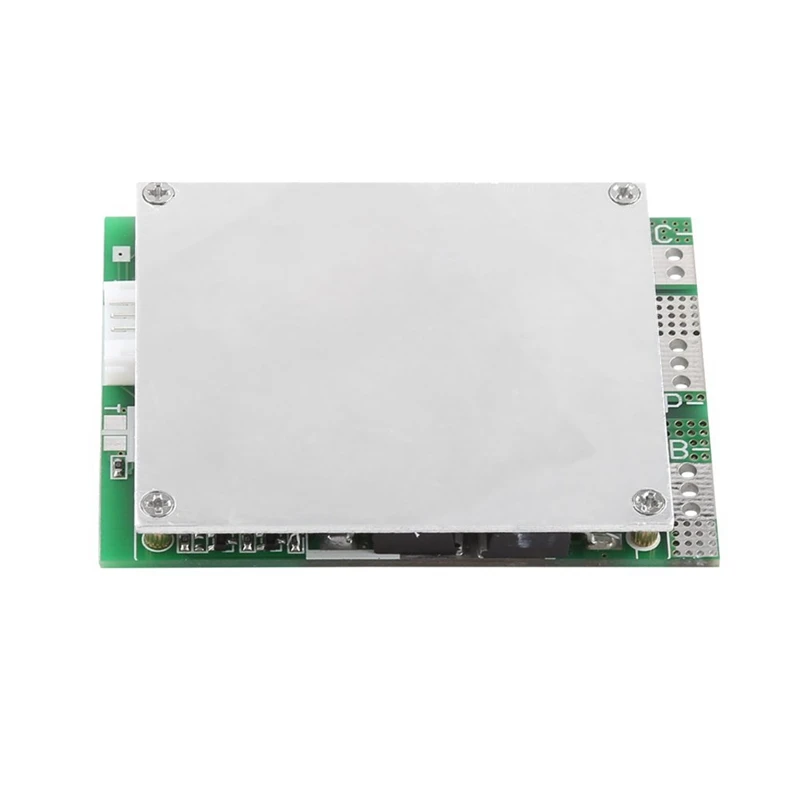

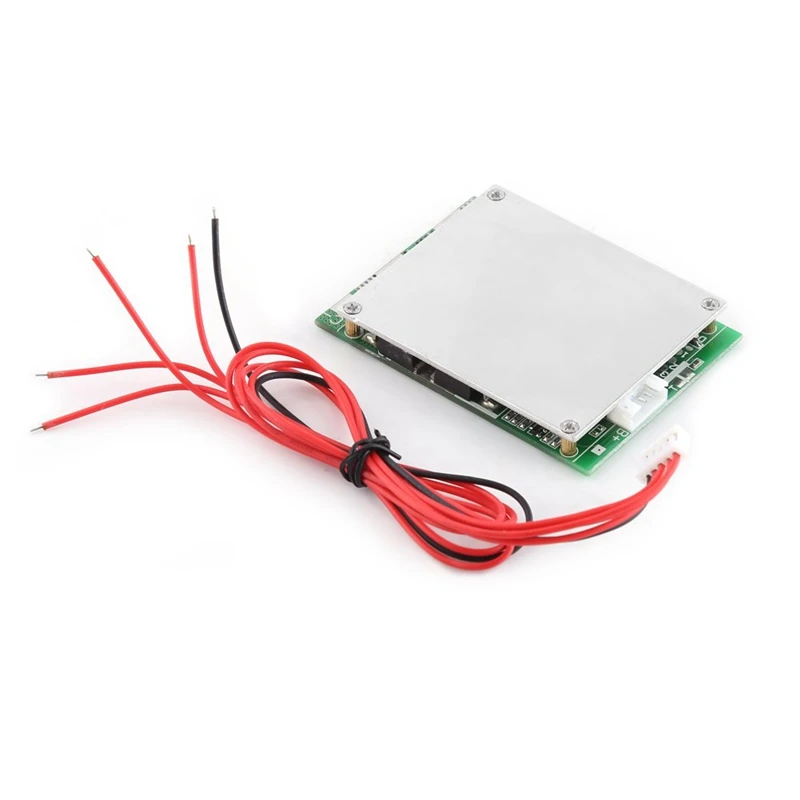

4S 100A 12V Protection Board For Lifepo4 Life 18650 Iron Phosphate Battery Bms Module With Balancing Function BALANCING FUNCTION: This battery protection module has a equilibrium function to keep each cell in balance and can extend the service life of battery.
MULTIFUNCTIONAL: This battery protection board will protect battery pack from overcharging, over-discharging over-current and short circuit, very useful.
PORTABLE: This battery protection board is very portable, great for DIY work.

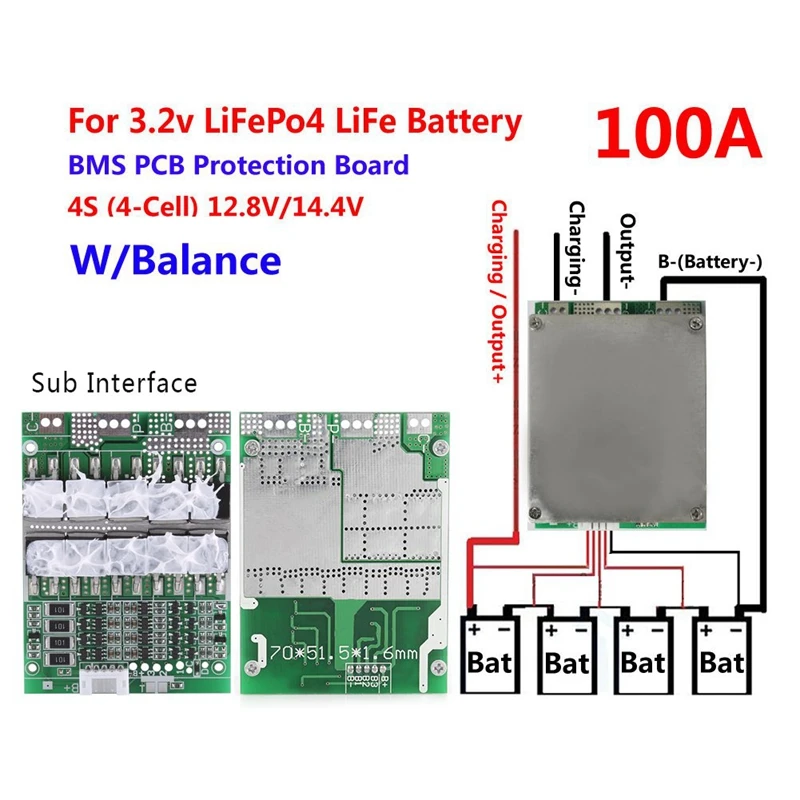

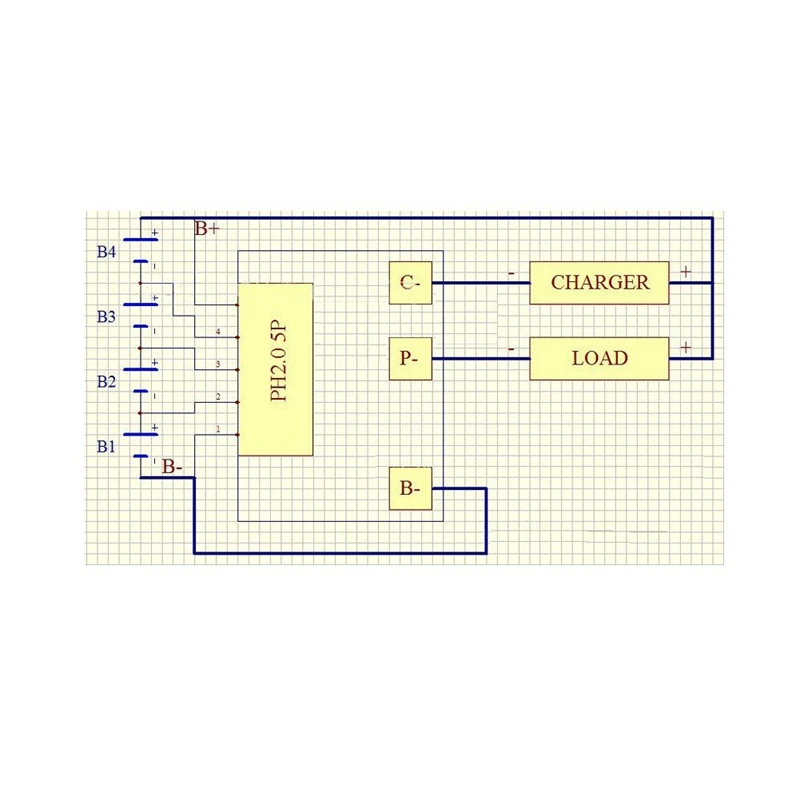

FOR 4 SERIES 12V LiFePO4 BATTERIES: Used for 4 series 12V LiFePO4 batteries, 5P-250mm wires included for your convenient use.
WIDE APPLICATIONS: Suit for home DIY work and school science project, wide used in battery protection work.
Discharge:Continuous Discharging Current 100A(MAX)/Instantaneous Discharge Current150A
Charge:Charging Voltage 15V/Charging Current 10A(MAX)
Overcharge Protect: Over-charge Detect 3.75±0.05V/Protect Delay 0.5S/Over-charge release 3.65±0.1V
Balance:Detect Voltage 3.60±0.05V/Release Voltage 3.60±0.05/Balance Current 36±5 mA
Over-discharge Protect:Over-discharge Detect 2.0±0.1V/Over-discharge Detect delay 0.1S/Release Voltage 2.25±0.1V
Over-current Protect: Detect Voltage150mV/Detect Delay 9mS/Current Detect 200±10A/Release Condition Cut Load
Short-circuit Protect: Protect Condition Load Short Circuit/Detect Delay 250 uS/Release Condition Cut Load
Resistance Inner less than equal 25mΩ
Self-Consumption Working Current less than equal 20uA
Sleep Current (when Over-discharge) less than equal 10uA
Sleep Current (when Over-discharge) less than equal 10uA
Working Temperature Range -30/+80℃

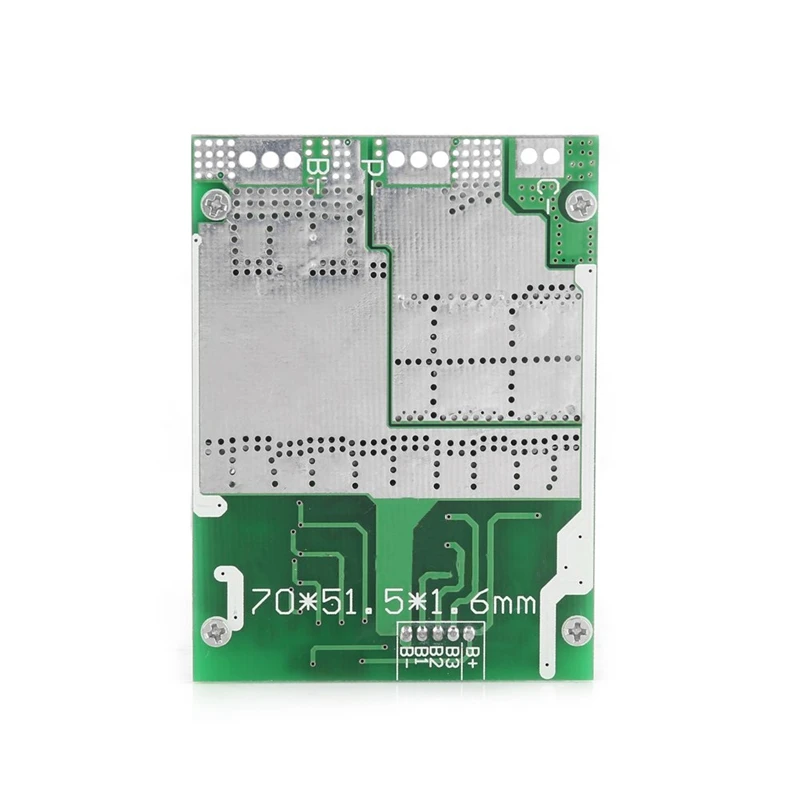

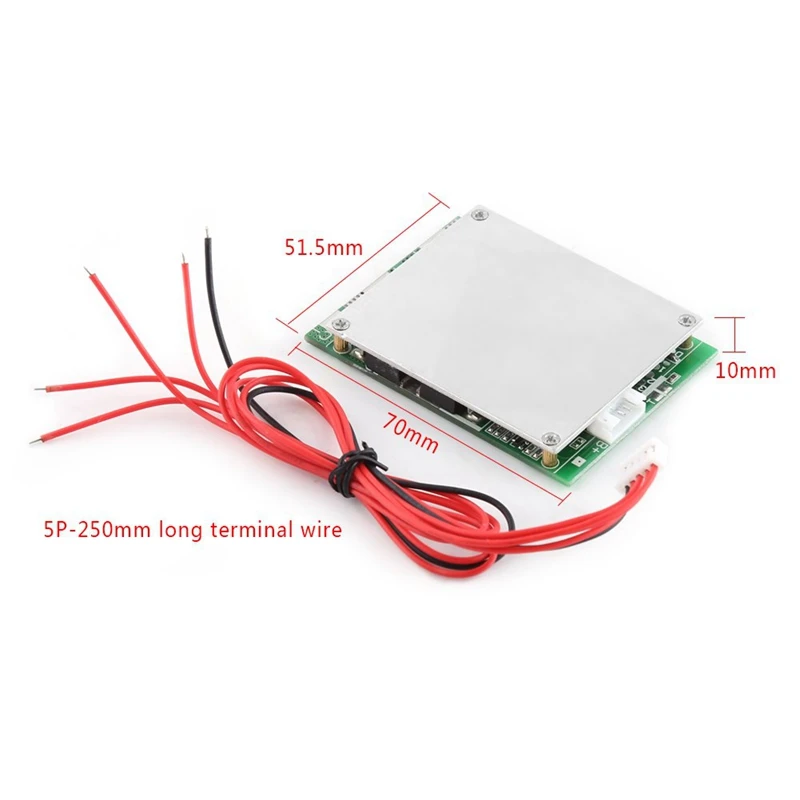

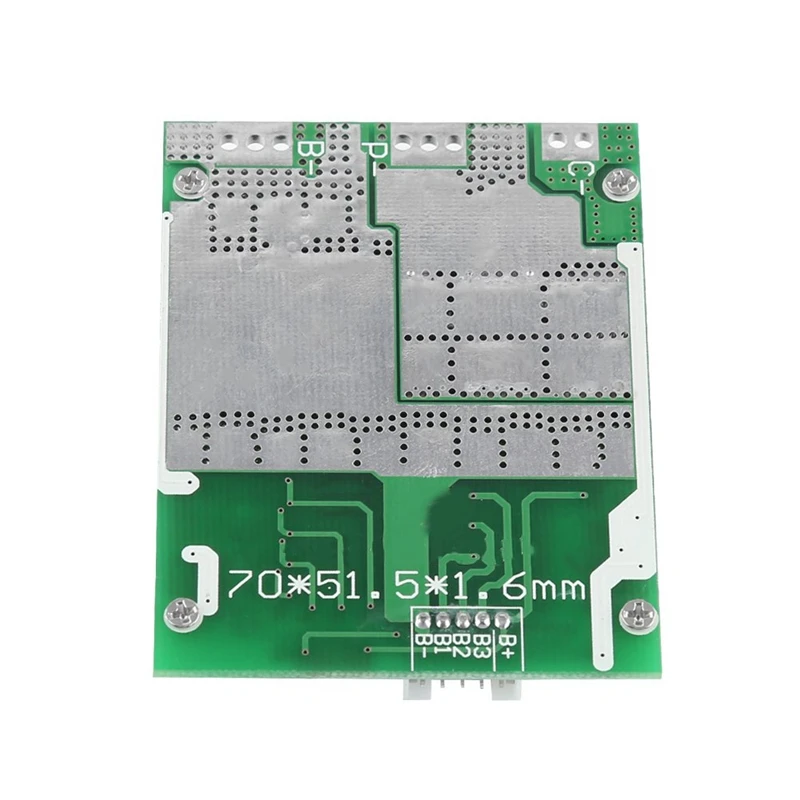

Size: 70*51.5*10mm / 2.75*2.02*0.39 inch
colour:Green + silver
Material:Metal + PCB
Package Contents:
1 * Battery Protection Board
1 * cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
